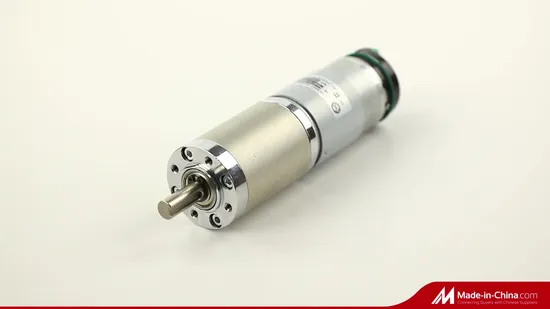

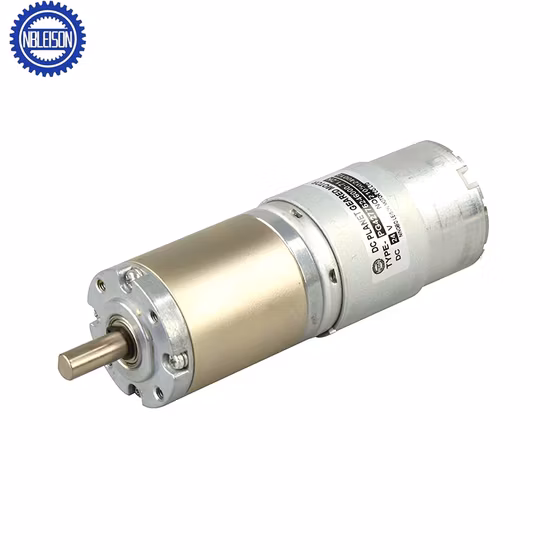

High Speed 24V 25/30W Micro DC Planetary Gear Motor Brushed

Basic Info

Model NO.	42mm DPN
Application	Universal
Operating Speed	High Speed
Function	Control, Driving
Casing Protection	Closed Type
Structure and Working Principle	Brush
Brand	Lunyee
Operating Temperature	-10c~+40c
Gear Stages	1-3 Stage
Rated Speed	3000rpm
Motor Life	2000h
Transport Package	Carton
Specification	25*10*10cm
Origin	China
Production Capacity	2000

Product Description

Product Parameter
Brush Motor Technical Data:

Model	Voltage	Power	No-Load Current	No-Load Speed	Rated Current	Rated Speed	Rated Torque
Z42DPN2425-30S	24V	25W	0.60A	3800rpm	1.6A	3000rpm	0.080N.m
Z42DPN2430-30S	24V	30W	0.70A	4000rpm	2.0A	3000rpm	0.096N.m

Brush DC Planetary Gear Motor Technical Data-62DPN2490-30S:

Ratio	3.65	5.36	6.55	8.63	14	19	25	28
Out-put Speed(rpm)	822	560	458	348	214	158	120	107
Allowable Torque(N.m)	0.26	0.38	0.47	0.62	0.87	1.2	1.600	1.8
Reduction Stage	1	1	1	1	2	2	2	2
Ratio	34	45	58	67	81	91	103	119
Out-put Speed(rpm)	88	67	52	45	37	33	29	25
Allowable Torque(N.m)	2.2	2.9	3.8	3.9	4.7	5.3	6	6.9
Reduction Stage	2	2	2	3	3	3	3	3
Ratio	128	146	165	192	132	302	393
Out-put Speed(rpm)	24	21	18	16	13	9.9	7.6
Allowable Torque(N.m)	7.4	8.5	9.6	11.000	13.000	15.000	15
Reduction Stage	3	3	3	3	3	3	3

Product Advantages
Planetary gear reducer is a new generation of practical products independently developed by our company ,which has the following main features:*Low noise *Hight torque*Low Backlash *High stability*High efficiency *High input speed
Product detailsProduct Application
Related Products:
Our products have the features of small size,light weight,high bearing capacity ,long service life,smoothoperation ,low noise,large output torque,high speed ratio,high efficiency and safe performance.It has the characteristics of power split and multi-tooth meshing.We currently produce Brushed Dc Motors, Brushed Dc Gear Motors, Planetary Dc Gear Motors,Brushless DC Motors, Stepper motors, Ac Motors and High Precision Planetary Gear Box etc.You can email us to recommend needed motors per your specification.

Company profileLunYee Culture:L-Loyalty to Customers U-Unity of working together N-New things introduced by us in our industry Y-Yield returns and enjoy together E- Easy to buy E- Easy to useA satisfying one-stop service comes from our continuous innovation team and our rigorously-inspected sub-contracters!Our products are widely applied to machine tools, industrial robot,textile machine,packing machine,food machine, medical appliance,CNC system and air condition and so on!

FAQ:
Q1. Can I have a sample order?
A: Yes, we can sell a sample, sit is pleased to receive a sample order to test and check the quality of products.Q2. How long is the warranty?
A: The products come with a one-year warranty.Q3. Can our logo be printed on this product?
A: Yes, please inform us formally before production and confirm the design firstly based on our sample.
