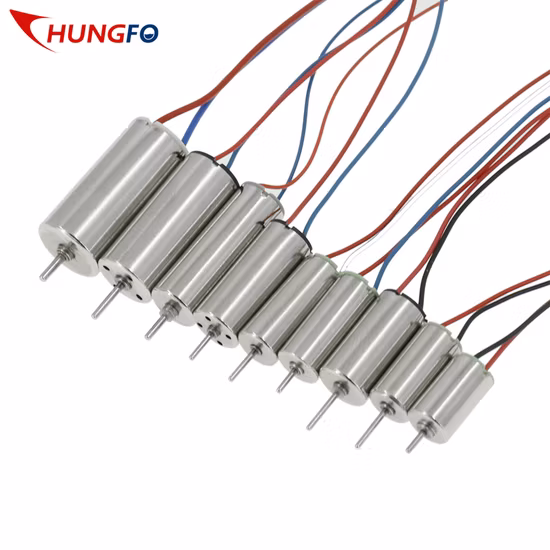

6mm Diameter Brush DC Coreless Vibration Motor for Mobile Phone
Company & Factory Appliance
Basic Info
| Model NO. | 6D614 |
| Application | Automation Equipment, Moving Machinery |
| Operating Speed | High Speed |
| Power Source | DC Motor |
| Function | Control, Driving |
| Casing Protection | Closed Type |
| Structure | Combined |
| Certification | ISO9001 |
| Diameter | 6mm |
| Length of Motor Body | 14.2mm |
| Transport Package | Standard Export Carton |
| Specification | 6mm x L14.2 |
| Trademark | CHUNGFO |
| Origin | China |
| HS Code | 8501109990 |
| Production Capacity | 4 Million PCS/Month |
Product Description
| 6D Series φ6mm x L14.2 Precious Metal Brushes |
| Motor Paramter | Motor Model | |||||||||||
| Values at nominal voltage | 6D1NA-082211 | |||||||||||
| 1 | Rated voltage | V | 3.7 | |||||||||
| Free Load | 2 | No load speed | rpm | 40424 | ||||||||
| 3 | No load current | mA | 30 | |||||||||
| At Max. Efficiency | 4 | Max. efficiency | % | 51.30% | ||||||||
| 5 | Speed | rpm | 31482 | |||||||||
| 6 | Current | mA | 104.6 | |||||||||
| 7 | Torque | g.cm | 0.61 | |||||||||
| At Max. Output | 8 | Max. output | W | 0.29 | ||||||||
| 9 | Speed | rpm | 20212 | |||||||||
| 10 | Current | mA | 199 | |||||||||
| 11 | Torque | g.cm | 1.39 | |||||||||
| At Stall | 12 | Stall current | A | 0.36 | ||||||||
| 13 | Stall torque | g.cm | 2.78 | |||||||||
| Motor Constants | ||||||||||||
| 14 | Teminal resistance | Ω | 9.1 | |||||||||
| 15 | Torque constant | g.cm/A | 8.204 | |||||||||
| 16 | Speed constant | rpm/V | 11886 | |||||||||
| 17 | Speed/Torque constant | rpm/g.cm | 14561.8 | |||||||||
| Motor Characteristic | Typical Performance | ||||||||||||||||
| Thermal parameters | | ||||||||||||||||
| 18 | Ambient temperature | -20~+65 | ºC | ||||||||||||||
| 19 | Max. permissible winding temperature | 85 | ºC | ||||||||||||||
| Mechanical parameters | |||||||||||||||||
| 20 | Max. penmissible No-load speed | 59000 | rpm | ||||||||||||||
| 21 | Max. axial load(dynamic) | 0.15 | N | ||||||||||||||
| Other parameters | |||||||||||||||||
| 22 | Number of pole pairs | 1 | |||||||||||||||
| 23 | Number of commutator segments | 3~5 | |||||||||||||||
| 24 | Weight | 1.8 | g | ||||||||||||||
| Remarks | |||||||||||||||||
| 1 | Rotation direction, wire specification and performance parameters can be | ||||||||||||||||
| made according to customer's requirement. | |||||||||||||||||
| 2 | Motor can be mounted with various shapes and sizes of eccentric weight which | ||||||||||||||||
| is made of iron, brass or ferro-alloy to become vibration motor. | |||||||||||||||||
| 3 | Dimension with "*" in the drawing can be adjusted according to customer's requirement. | ||||||||||||||||
| 1g=0.035oz 1inch=25.4mm 1g.cm=0.098mN.m 1oz=28.35g 1mm=0.0394inch 1mN.m=10.2g.cm | |||||||||||||||||
